Orthopedic Implants, Medical Titanium Plate, Clavicle Hook Lockng Plate, Plate LCP

Small Locking Fragment Plating System Clavicle Hook PlateMatching Screw: 3.5mm Cortical Screw; 3.5mm Locking Screw Product InformationProduct NameClavicle Hook Plate MaterialTitaniumProduct ColorGraySurface FinishedAnodizingQuality StandardISO, CE BrandCanwell / CustomizedSpecificationHole 4 - 7Length41mm - 74mmHS

Featured Products

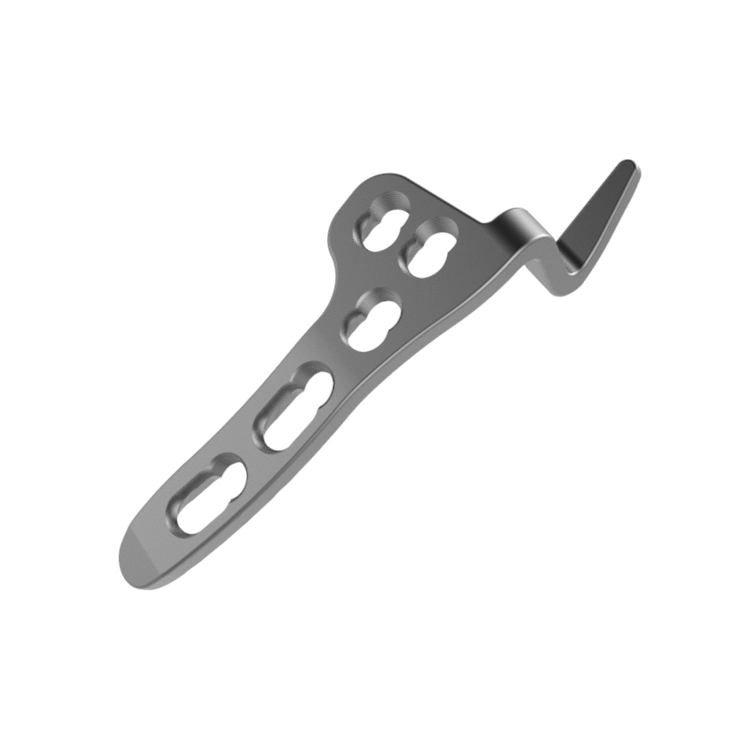

Small Locking Fragment Plating System Clavicle Hook Plate
Matching Screw: 3.5mm Cortical Screw; 3.5mm Locking Screw

Product Information
Product NameClavicle Hook Plate
 MaterialTitanium
Product ColorGray
Surface FinishedAnodizing
Quality StandardISO, CE
 BrandCanwell / Customized
SpecificationHole 4 - 7
Length41mm - 74mm
HS Code 902110000
SpecificationHoleDirectionP.NLengthHeightMaterial
4HolesLeft12223610441mm18Titanium
5Holes12223610553mm18Titanium
6Holes12223610664mm18Titanium
7Holes12223610774mm18Titanium
4Holes12223620441mm15Titanium
5Holes12223620553mm15Titanium
6Holes12223620664mm15Titanium
7Holes12223620774mm15Titanium
4HolesRight12223630441mm18Titanium
5Holes12223630553mm18Titanium
6Holes12223630664mm18Titanium
7Holes12223630774mm18Titanium
4Holes12223640441mm15Titanium
5Holes12223640553mm15Titanium
6Holes12223640664mm15Titanium
7Holes12223640774mm15Titanium


Orthopedic Implants, Medical Titanium Plate, Clavicle Hook Lockng Plate, Plate LCP
Orthopedic Implants, Medical Titanium Plate, Clavicle Hook Lockng Plate, Plate LCP
Orthopedic Implants, Medical Titanium Plate, Clavicle Hook Lockng Plate, Plate LCP
Orthopedic Implants, Medical Titanium Plate, Clavicle Hook Lockng Plate, Plate LCP

Instrument Set
P.NDescriptionQty.
112100001Depth Gauge for φ2.5mm-φ4. 0mm Length 60mm1
112100002Plate Bender, left Length 190mm1
112100003Plate Bender, right Length 190mm1
112100004LC-DCP Drill Guide, Ø2.5/Ø3.5mm1
112100005Double Drill Sleeve I, Ø2.5/Ø3.5mm1
112100008Bending Template, large Length 118mm Width 10mm1
112100009Bending Template, small Length 92mm Width 10mm1
112100014Countersink Length 100mm1
112100015Drill Bit, Ø3.5mm Length 112mm Thread Length 60mm1
112100016Drill Bit, Ø2.5mm Length 112mm Thread Length 30mm2
112100017Hexagonal Screwdriver Shaft1
112100018Tap for Cortex Screw φ3.5mm Length 112mm Thread Length 30mm1
112100019Tap for Cancellous Bone Screw φ4.0mm Thread Length 20mm1
112100020Universal Drill Guide II, Ø3.5/2.5mm1
112100022Hexagonal Screwdriver with Holding Sleeve, Length 200mm1
112100024T-handle with Quick Coupling Length 90mm1
112200001Torque Limiter 1.5N Length 220mm1
112200002φ2.8Threaded Drill Sleeve for φ3.5mm2
112200003Stardrive Screwdriver Shaft, Length 120mm1
112200004φ2.8Drill Bit Length 165mm Thread Length 40mm2
112200005Easyout Length 80mm1
112200009Screw Driver Length 200mm1
112200010Bender for K-Wire1
112200013φ2.8 Drill Bit Length 185mm1
112200014Long Threaded Drill Sleeve for 2.8mm  1
112127000Screw Tray1
112128000Instrument Tray1
Orthopedic Implants, Medical Titanium Plate, Clavicle Hook Lockng Plate, Plate LCP
Orthopedic Implants, Medical Titanium Plate, Clavicle Hook Lockng Plate, Plate LCP
Orthopedic Implants, Medical Titanium Plate, Clavicle Hook Lockng Plate, Plate LCP


Company Introduction>>
Mini Fragment 2.4mm Reconstruction Trauma Plate Orthopedic Surgical Implants
FAQ:

Q: Trading company or manufacturer?
A: We are manufacturer since 1994. Our location is in Jinhua, Zhejiang Province, East China.
     2 hours by high-speed train from Shanghai.

Q: How's quality? Any Certificate? Regions of sales?
A: Our products are approved by CE/ISO13485.
     At present our main overseas markets are Asia, South America and Europe.

Q: Regional Distribution?
A: Yes we are looking for and welcome distribution.
     Please contact us for discussion if you are interested to become our distributor.

Q: How long is delivery time?
A: Generally 7-15 days if stock available and 30-45 days if regular production needed.
    Depending on order quantity, product type, and other order factors and requirements.

Q: Samples available? Free or extra ?
A: We can accept sample order. With extra price.

Q: Terms of payment ?
A: T/T.

Q: Any OEM service?
A:  We can offer OEM service. Products can be made-to-order and with special requirements.
